Sieving length: 1000~4500mm
Sieving throughput: 300~800kgs
Designed for sieving materials with different grains.
Simple construction. Rigid. Easy to change screen. Minimum trouble
Available to equip with air cooling system.
Suitable for processing after pellet cut for extruding machine.( Custom weight is available )
- With air Cooler
- Choice of air blower 2 ~ 7.5HP

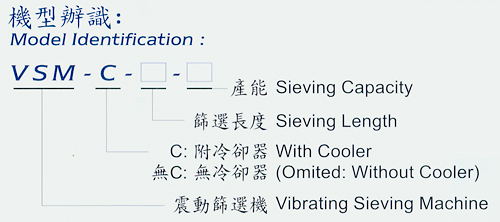

SPECIFICATIONS: Model Sieving Capactiy Sieving Length Motor Machine Dimensions(L×W×H) VSM-300 300 kgs/hr 1000mm~1200mm 1/4 HP × 2 1500x 620x 700 mm VSM-500 500 kgs/hr 1200mm~1800mm 1/4 HP × 2 2150x 650x 700 mm VSM-800 800 kgs/hr 1500mm~3000mm 1/3 HP × 2 3400x 800x 850 mm ※ Specifications and design characteristics are subject to change without prior notice.
